External gear pump FBE 1" D
Review this model’s data, construction options and documentation before specifying the pump set for your process.
Technical specifications.

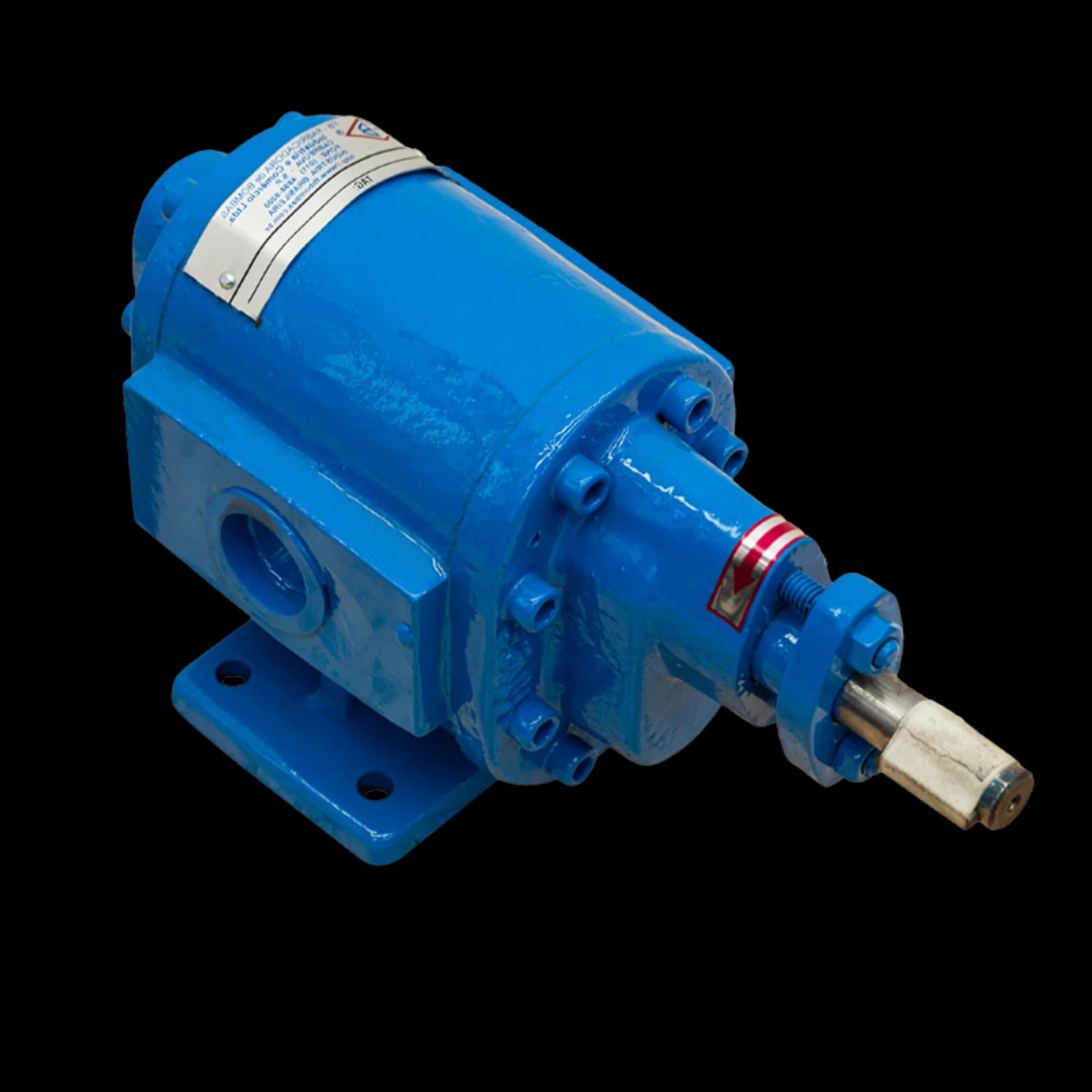

Model photograph
- Maximum catalog flow
- 88.6 L/min
- Maximum pressure
- 22 kgf/cm²
- Maximum speed
- 1,750 rpm
- Maximum viscosity
- 7,500 SSU
- Series maximum temperature
- 500 °C
- Weight
- 11.5 kg
- Inlet
- Ø 1" BSP
- Outlet
- Ø 1" BSP
Limits depend on the configuration and do not describe a single duty point. Check the curve and assess flow, pressure, viscosity and temperature together.
Technical source: FBE manual MTEC-01/01.Construction data · FBE 1″ D
Manual MTEC-01/01, Table 5- Gear diameter
- 49 mm
- Gear length
- 100 mm
- Number of teeth
- 11
- Standard shaft diameter
- 15.87 mm
- Gears
- 2 helical: 1 drive and 1 driven
- Mechanical seal size
- 5/8″
- Packing cross-section
- 1/8″
- Shaft diameter with external bearing
- 15 mm
- Direction of rotation
- Clockwise, with counter-clockwise option (viewed from the drive end)
- Code suffix D
- Longer gear
Models with this connection diameter
Each code opens its own specification sheet. Compare flow rates and construction before selecting.
Availability
FBE 1″ in stock
The FBE 1″ is among the FBE pumps from 1/8″ to 4″ kept in stock in Cabreúva-SP, in every configuration and option. Send the model, fluid and application: our team confirms the quantity available and pricing.
Dimensional drawing for this connection diameter
Side and front views with the installation dimensions for this connection diameter. Tap the drawing to enlarge it and check each dimension.
Installation data
- Inlet
- Ø 1" BSP
- Outlet
- Ø 1" BSP
- Weight
- 11.5 kg
- Maximum viscosity
- 7,500 SSU
Dimensions in millimetres, per section 6 of MTEC-01/01.
Flow and power by speed and pressure
Flow and power reference values by speed and discharge pressure. Check manual MTEC-01/01 for selection conditions.
| Pressure (kgf/cm²) | 1,750 rpm | 1,150 rpm | ||
|---|---|---|---|---|
| Flow (L/min) | Power (cv) | Flow (L/min) | Power (cv) | |
| 0 | 88.6 | 0.75 | 60 | 0.75 |
| 2 | 88 | 1 | 59.5 | 1 |
| 4 | 87.3 | 1.5 | 59 | 1.5 |
| 6 | 86.6 | 2.2 | 58.5 | 2 |
| 8 | 85.8 | 3.1 | 58 | 2.5 |
| 10 | 84.9 | 3.9 | 57 | 3 |
| 12 | 83.8 | 4.9 | 56 | 3.7 |
| 14 | 55 | 4.5 | ||
| 16 | 54 | 5.2 | ||
| 18 | 52 | 6 | ||
| 20 | 50 | 7 | ||
| 22 | 48 | 8 | ||
Blank cell: point outside the published range for that speed.
Speed by viscosity
Manual MTEC-01/01, Table 2| Viscosity (SSU) | Speed (rpm) | Drive |
|---|---|---|
| 30–250 | 1,750 | Direct |
| 250–2,500 | 1,150 | Direct |
| 2,500–7,500 | 850 | Direct |
Motor power margin
Manual MTEC-01/01, Table 4| Absorbed power | Recommended margin |
|---|---|
| Up to 2 cv | 50% |
| 3 to 5 cv | 30% |
| 6 to 10 cv | 25% |
| 11 to 25 cv | 15% |
| Above 25 cv | 10% |
Add the margin to the absorbed power at the duty point to choose a commercial motor (cv is metric horsepower).
Inside the FBE 1" D.
The final configuration depends on the fluid and operating conditions. Materials and options below describe available supply configurations.
Material options by component
Construction options for the FBE series. Each component material, seal and accessory is selected for the fluid and operating conditions. Confirm the available configuration for the model in the supply specification.
- Casing and covers
- ASTM A48 CL30 cast iron, ASTM A536 60-40-18 ductile iron, ASTM A216 WCB carbon steel or ASTM A743 CF8M stainless steel.
- Shafts and gears
- SAE 1045 steel or AISI 316L stainless steel. Special treatments on request.
- Bushings
- Self-lubricating bronze, cast iron, PTFE (Teflon), graphite or white metal.
- Relief valve
- Brass or AISI 304 stainless steel.
Specify the assembly for the operating conditions
Fluid and duty point
Provide the fluid, flow, differential pressure, temperature and viscosity at pumping conditions. Review these together with speed and suction conditions. Also state the supply frequency (50 or 60 Hz): a gear pump moves a volume of liquid with each shaft revolution, so the flow depends on the speed set by the motor and drive.
Sealing and materials
Confirm each component material and the seal for the configuration. Packing, mechanical seals and lip seals are series options; availability depends on the supplied configuration.
Heating
The CA heating chamber is not available at this connection size.
Assess each limit for the model and configuration, without assuming simultaneous maxima. Before installation, confirm connections, flange class, sealing and the dimensional drawing.
Sealing per the manual
Manual MTEC-01/01, sections 2 and 3- Gland packing — compressed by the gland follower and adjusted by a hex nut
- Mechanical seal type 21 — ceramic × graphite × viton, AISI 304 spring
- Lip seal — installed in a specially manufactured cover or casing
- Magnetic coupling — special sealing where no leakage is allowed, with corrosive, toxic or explosive fluids
Accessories per the manual
Manual MTEC-01/01, sections 2 and 3- Drive
- Electric motor or combustion engine.
- Coupling
- Flexible, with or without spacer, FB standard or other manufacturers.
- Coupling guard
- FB standard guard in carbon steel or non-sparking material.
- Baseplate
- Welded structural steel or "U" channel plate.
- Nameplate
- Aluminium or stainless steel.
Auxiliary connections
Manual MTEC-01/01, Table 17, column 3/8″–1″| Connection | Function | Thread |
|---|---|---|
| D1 | Drain | 1/4″ BSW |
| D2 | Drain | 1/4″ BSW |
| D31 | Seal gland drain | 1/4″ NPT |
| M11 | Measuring instrument | 1/4″ NPT |
| M21 | Measuring instrument | 1/4″ NPT |
| F11 | Seal flush | 1/4″ NPT |
| Q11 | Seal quench | 1/4″ NPT |
1 Provided only according to the application and the customer’s request.
Parts and spares.
Standard parts list from MTEC-01/01 for the packed construction, with part numbers per DIN EN 24250. The optional assemblies show what each configuration adds.
Parts list · Table 9 · FBE 1″ D–1″ DA with packing
MTEC-01/01 · DIN EN 24250| Part no. | Description | Qty |
|---|---|---|
| 102 | Casing | 1 |
| 163.1 | Front cover | 1 |
| 163.2 | Rear cover | 1 |
| 210 | Drive shaft | 1 |
| 213 | Driven shaft | 1 |
| 400.1 | Gasket (cover / casing) | 2 |
| 452 | Gland follower | 1 |
| 461 | Packing ring | 5 |
| 540 | Bushing | 4 |
| 560 | Dowel pin | 4 |
| 87-2.1 | Drive gear | 1 |
| 87-2.2 | Driven gear | 1 |
| 914 | Socket head cap screw | 16 |
| 902 | Stud | 2 |
| 912 | Plug | 2 |
| 920 | Hex nut | 2 |
| 940.1 | Key | 1 |
| 940.2 | Key | 1 |
Optional assemblies
Mechanical sealTable 12
| Part no. | Description | Qty |
|---|---|---|
| 163.3 | Rear cover for the seal | 1 |
| 210.1 | Drive shaft for mechanical seal | 1 |
| 400.3 | Gasket (gland plate / flange) | 1 |
| 433 | Mechanical seal | 1 |
| 471 | Gland plate | 1 |
| 574 | Spring retainer | 1 |
| 540.2 | Mechanical seal bushing | 1 |
| 723 | Flange | 1 |
| 914.2 | Socket head cap screw | 4 |
| 914.3 | Socket head cap screw | 1 |
| 916 | Socket set screw | 3 |
| 940.1 | Key | 1 |
Lip sealTable 13
| Part no. | Description | Qty |
|---|---|---|
| 163.4 | Rear cover for the seal | 1 |
| 210 | Shaft | 1 |
| 421 | Lip seal | 2 |
| 940.1 | Key | 1 |
External bearingTable 15
| Part no. | Description | Qty |
|---|---|---|
| 210.2 | Drive shaft for external bearing | 1 |
| 330 | Bearing bracket | 1 |
| 321 | Rolling bearing | 1 |
| 540.3 | Bearing bushingOnly on FBE 3/4″ and 1″ (manual note) | 1 |
| 910.1 | Key | 1 |
Relief valveTable 16
| Part no. | Description | Qty |
|---|---|---|
| 484 | Spring support | 1 |
| 580 | Cap nut | 1 |
| 59-6 | Ball | 1 |
| 71-2 | Nipple | 1 |
| 756 | Spring | 1 |
| 757 | Adjusting screw | 1 |
| 924 | Adjusting nut | 1 |
Use cover (163) for the valve.
Curves and drawings for this connection diameter
The pump code, speed and construction identify the correct document for your selection.
Product catalogues
These catalogues complement the technical manuals. For sizing and operating limits, consult the specific documentation and engineering team.
Documents for this connection diameter
Files cover configurations with this connection diameter. Check the code, variant and speed stated in each document before selecting the pump set.
Selection conditions for this model
The FBE 1" D serves continuous processes, high viscosity fluids, industrial production. For this connection diameter, Table 2 (MTEC-01/01) reaches 7,500 SSU, at 850–1,750 rpm; the more viscous the fluid, the lower the speed. The CA heating chamber is offered only from 1.1/2″ up. This connection diameter has 4 models: code FBE-1-D identifies the curves, materials and options of the same configuration.
Questions about the FBE 1" D.
What is the reference flow for the FBE 1" D?
The published reference for this model is 88.6 L/min, with a maximum speed of 1,750 rpm. Check the flow at the required discharge pressure in the model table or in MTEC-01/01. Maximum flow and maximum pressure are separate limits, not one duty point.
Can the FBE 1" D have a heating chamber?
The CA heating chamber is not available at this connection diameter. It is offered on FBE pumps from 1.1/2″ to 6″. If the fluid must be kept heated, discuss the configuration with FB Bombas engineering.
What should I provide to specify the FBE 1" D?
Provide the fluid, required flow, differential pressure, operating temperature and viscosity. The published viscosity limit for this connection diameter is 7,500 SSU; speed, materials and sealing must be selected for the actual service. Include suction conditions and the intended drive.
Is the FBE 1" D in stock?
Yes: the FBE 1" D is kept in stock in Cabreúva-SP, in every configuration and option. Request a quotation using code FBE-1-D; FB Bombas confirms the quantity available, the pricing and the dimensional drawing for supply. Existing dimensional files cover specific arrangements; check the variant and connections before defining the installation.
How many gears does the FBE 1" D have?
Per Table 5 (MTEC-01/01), the FBE 1" D uses two helical gears, one drive and one driven, with a 49 mm gear diameter, 100 mm gear length and 11 teeth, on a 15.87 mm standard shaft. Rotation is clockwise with a counter-clockwise option, viewed from the drive end.
Which speed suits the FBE 1" D for each viscosity?
Table 2 (MTEC-01/01) sets the speed by viscosity for this connection diameter: 30–250 SSU: 1,750 rpm (direct), 250–2,500 SSU: 1,150 rpm (direct) and 2,500–7,500 SSU: 850 rpm (direct). Above the direct-drive range, a pulley or gear reducer lowers the speed; the duty point and the curve confirm the final choice.
Which spare parts make up the FBE 1" D?
In the packed construction, Table 9 (MTEC-01/01) lists 18 items numbered per DIN EN 24250, starting with casing, front cover, rear cover, drive shaft, driven shaft and gasket (cover / casing). The mechanical seal, lip seal, external bearing and relief valve options have their own parts lists. Quote code FBE-1-D and the part number when requesting spares.
Request a configuration for this FBE model
Send fluid, flow, pressure, operating temperature and viscosity. This model code is included in the request; engineering responds with the confirmed configuration and corresponding quotation.
In stock, in every configuration. Quantity and pricing are confirmed by our team.
