FB Bombas factory · Cabreúva-SP, Brazil

Fire Pump Factory

FB Bombas assembles pre-assembled FBFS fire pump sets in Cabreúva-SP: FBCN main pump with electric motor, diesel engine or both, jockey and control panel, designed in accordance with NFPA 20 or ABNT NBR 16704, when specified.

The applicable standard and conformity documentation are defined for each project.

FB Bombas centrifugal fire pump
Centrifugal fire pump. The complete set is defined by the project.

Brazilian Pump Manufacturer since 1944, with Engineered Fire Pump Skids

A Brazilian pump manufacturer since 1944, FB Bombas designs and manufactures complete fire pump systems. Skids pre-assembled at our Cabreúva-SP factory integrate centrifugal main pump, jockey pressurization pump, diesel or electric motor, control panel and instrumentation, designed to NFPA 20 or ABNT NBR 16704 as the project requires — delivered ready for commissioning.

FB Bombas operates a single factory in Cabreúva-SP, Brazil. It produces this category: Fire pumps and fire pump sets.

Production category
Fire pumps and fire pump sets
Factory address
Av. Adolpho João Traldi, 80 - Jacaré, Cabreúva-SP, Brazil
Manufacturer since
1944
In-house processes
Application engineering and design, CNC machining and assembly

At the factory

Select a photo to enlarge it.

Product lines made in this category

Each family links to its models, dimensions and the series technical manual.

Fire Fighting

Side view of a fire pump assembly with diesel engine and canopy

Electric or diesel driven pumping sets for fire protection systems.

Drive
Electric, diesel or combined
Designed to
NFPA 20 and NBR 16704
Online catalog

Series FBCN

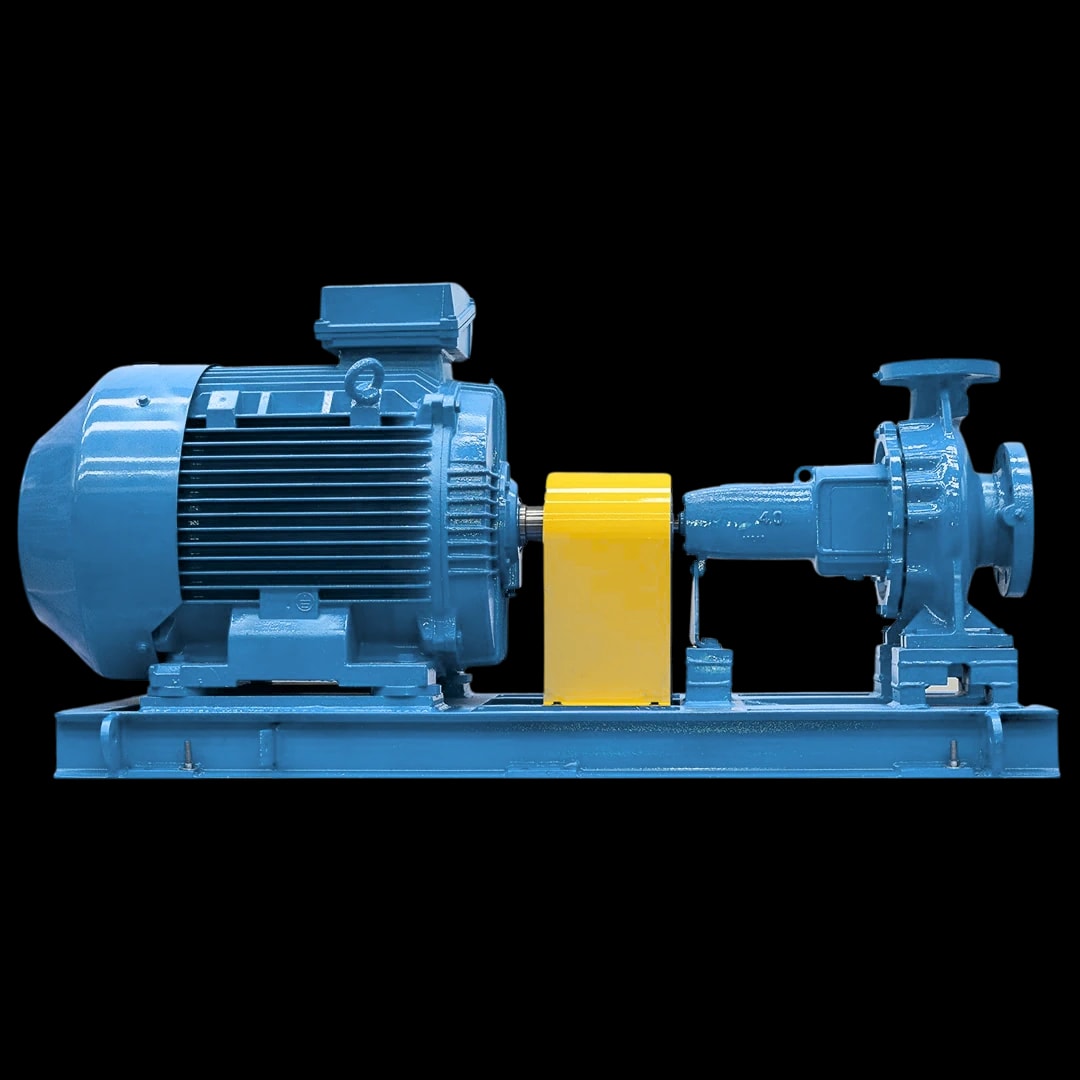

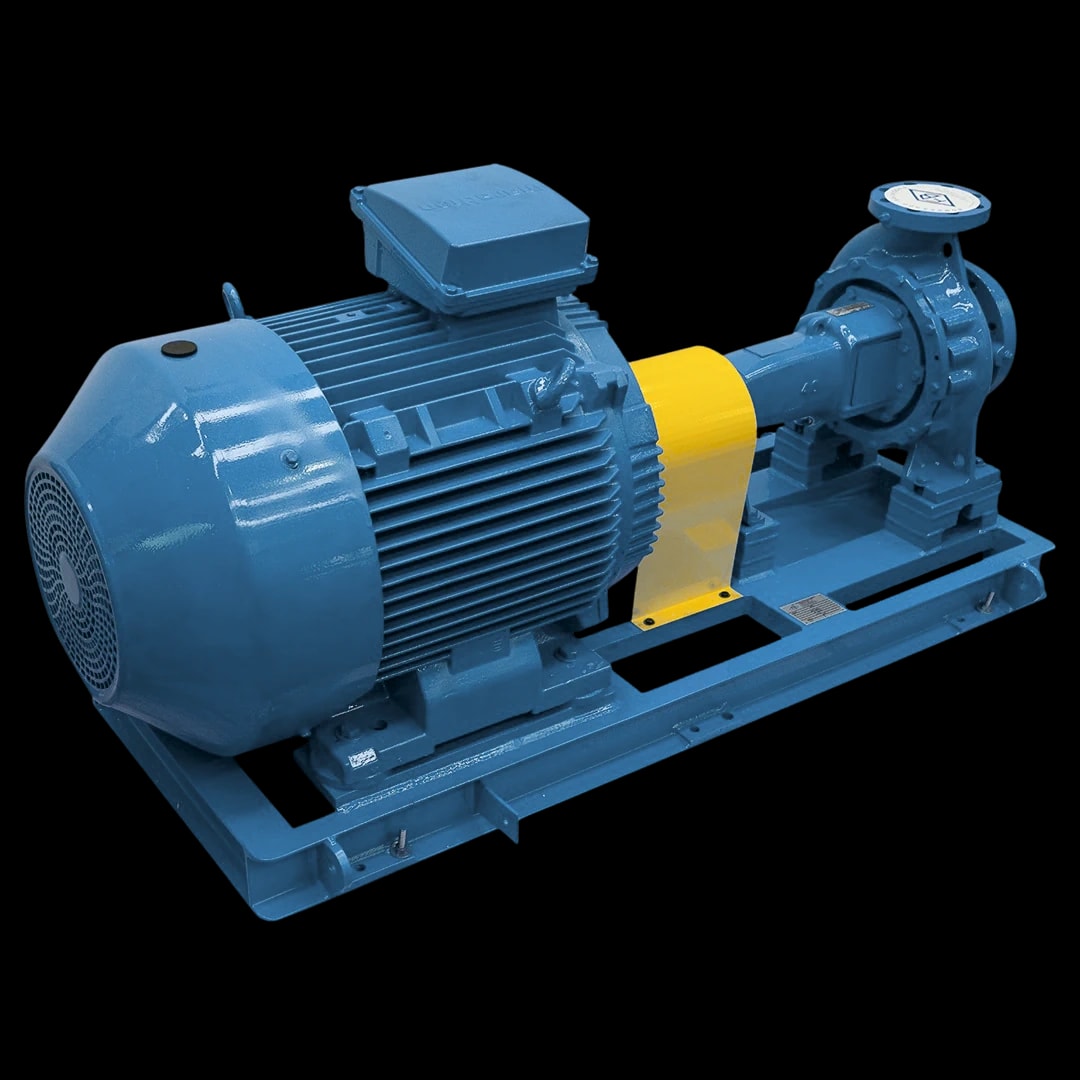

FBCN series pump set with electric motor, coupling guard and steel baseplate

Main pump of FBFS packages. Model-specific curves and MTEC-03/00 technical manual in Portuguese.

Max. flow
2,200 m³/h
Max. head
135 m
Technical manual

Not sure which line fits?

Describe the fluid, flow rate and operating conditions. Engineering will recommend the series and model.

Series limits, each under its own conditions: they are not one duty point and do not apply to every model.

How to assess your application

Gather these details before contacting engineering. Partial information is enough to get started.

What to provide

  • Hydraulic design memorandum: design flow and pressure, with units and pressure reference; combined demand where sprinklers are included
  • Suction: reservoir type, minimum water level and elevation difference to the pump
  • Intended driver: electric, diesel or both, and available electrical supply
  • State where the project is located, adopted standard (NBR 16704 or NFPA 20) and required documents
  • Scope: main pump, jockey, control panel and assembly

Industries served

  • Logistics Warehouse
  • Shopping Center
  • Hospital
  • Refinery
  • Building Construction

Models and documentation

Catalogues and manuals identified by series and language. Catalogues complement the technical manuals.

Frequently asked questions

Answers on manufacturing, selection and supply for this category.

What does FB Bombas do at the factory when it supplies a fire pump package?

The Cabreúva-SP factory combines application engineering and design, CNC machining and assembly. That covers both the centrifugal main pump and the package: the pump is machined and assembled there, and the package receives the jockey pump, diesel or electric driver and controller as the project requires. The documents that come with the supply are defined in the proposal.

What is the difference between a fire pump manufacturer and a company that only assembles the package?

A manufacturer machines and assembles its own pump; an integrator buys the pump from a third party and builds the package around it. When comparing proposals, ask who makes the main pump, where it is machined and which documents come with the package.

At FB Bombas the centrifugal main pump is made at its own factory, and the skid composition follows the project.

Is FB Bombas a real manufacturer or just a fire system integrator?

FB Bombas has been an industrial pump manufacturer since 1944: the centrifugal main pump of the packages is from the FBCN line, made by FB Bombas itself.

Skids are assembled at our Cabreúva-SP factory, with integration of jockey pump, driver (diesel or electric), control panel and instrumentation — the main pump comes from the factory itself, not from a third-party integrator.

Do FB Bombas skids comply with NFPA 20?

When the project requires it, yes: skids are designed to NFPA 20 (Standard for the Installation of Stationary Pumps for Fire Protection) or ABNT NBR 16704, and main pump, jockey, driver and panel are specified by the adopted standard. The demand comes from the automatic sprinkler (ABNT NBR 10897) or hydrant (ABNT NBR 13714) system design.

State any documents or equipment conditions required by the project, insurer or authority in the request.

What is the flow and pressure range of FB Bombas systems?

There is no fixed published range: each skid is sized for the flow and pressure required by the project, from commercial buildings to industrial plants. State the rated flow, pressure and adopted standard in your request.

Does FB Bombas supply systems with redundant diesel and electric motors?

Yes, when the project specifies it: the configuration with an electric main pump and a diesel main pump keeps an independent driver available if the other fails. It is common in high-criticality buildings, according to the project risk analysis.

How long does it take to manufacture a fire pump skid?

Lead-time varies with skid complexity (flow, redundancy, special materials). The schedule is defined in proposal after technical analysis of the project and dialogue with the responsible engineer.

What is the normative compliance of the control panel?

The control panel is specified by the standard adopted in the project (NFPA 20 or ABNT NBR 16704) and by the low-voltage electrical installation rules (ABNT NBR 5410), and its documentation comes with the package.

Does FB Bombas offer on-site commissioning?

Yes, on request: on-site commissioning can include alignment check, jockey pressure switch adjustment and guidance for the operating team. Scope, team and schedule are defined in the proposal.

Is the system compatible with AVCB and Brazilian Fire Department?

The AVCB (the São Paulo Fire Department inspection certificate) is issued for the building, after inspection, not for a piece of equipment. FB Bombas supplies the package documentation used in that process — performance curve and operation manual and, when contracted, technical memorial and ART for the scope — according to the state Technical Instructions.

Request a fire pump package configuration

Send the design brief, flow, pressure, suction conditions and intended drive. Engineering selects the components and sets out the proposed package according to the project requirements.

Materials, availability and lead time are confirmed in the technical-commercial proposal.
