Thermal oil pump FBOT Series

Centrifugal pump for organic thermal oils up to 350 °C, with no external cooling, dual sealing and back pull-out construction. Select the model, compare connections and confirm the operating point with the technical team.

FBOT pump viewed from suction, with top discharge and mounting feet
FBOT series photograph. The supplied configuration depends on technical selection.

Talk to engineering

FBOT models by discharge diameter FBOT

The FBOT is the thermal oil pump from FB Bombas, a Brazilian manufacturer since 1944, in Cabreúva, SP. Select by model code or discharge diameter. The code gives both sizes: in FBOT 32-160, the discharge flange has a nominal diameter of 32 mm and the impeller a nominal diameter of 160 mm.

Each model page brings together the available data for technical assessment.

A selection shows the same DN and the immediately smaller and larger discharge diameters. Similar size does not imply hydraulic equivalence.

35 catalogue models

Large-capacity models require a dimensional consultation. Confirm flow and head for the project oil, temperature and speed.

Construction of the FBOT thermal oil pump

FB Bombas Engineering documents FBOT construction, sealing and selection criteria (MTEC-16/00).

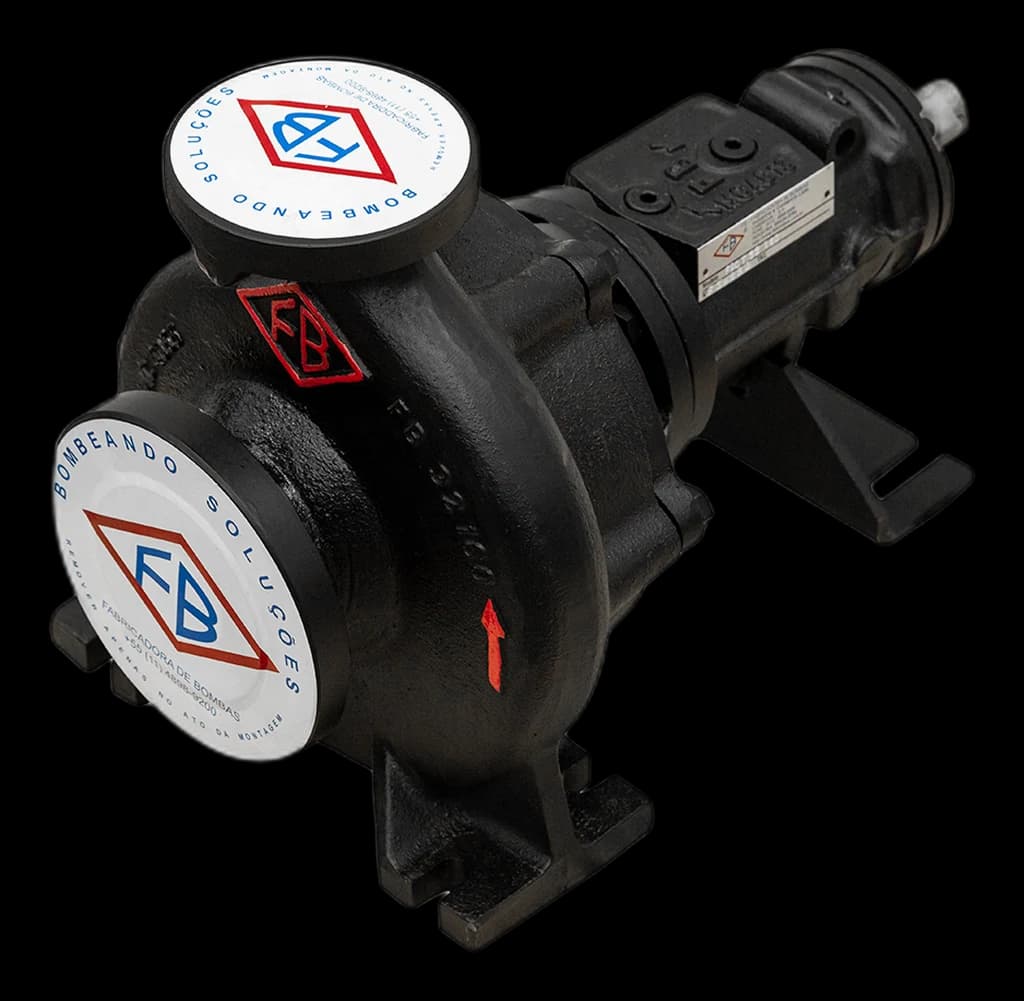

Front view

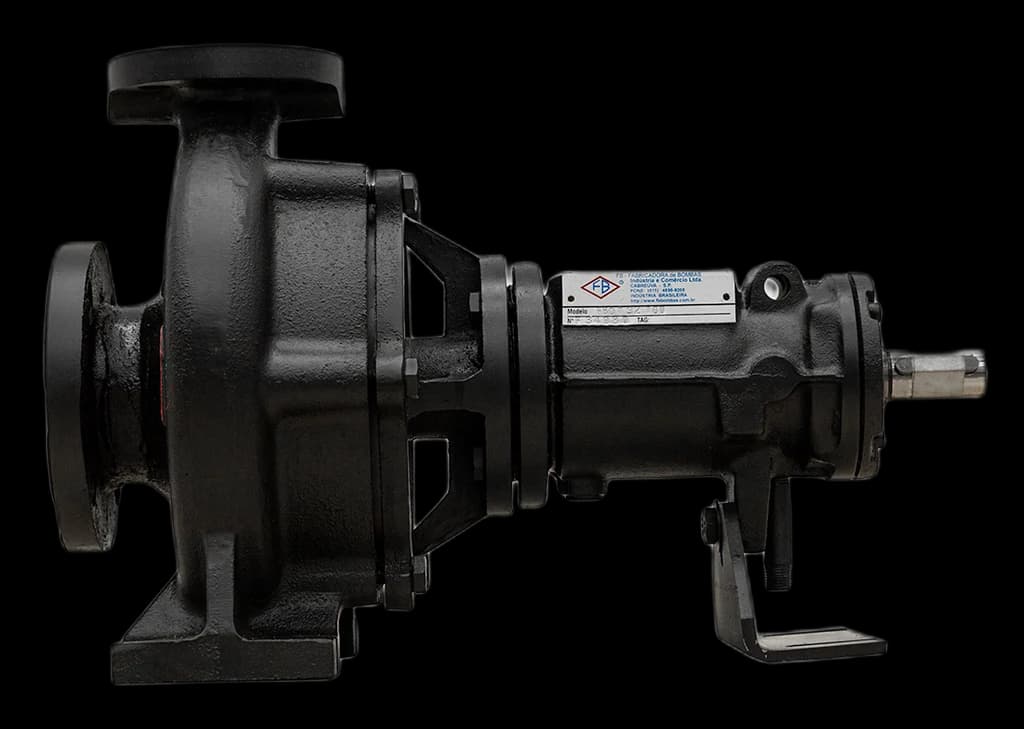

Side view

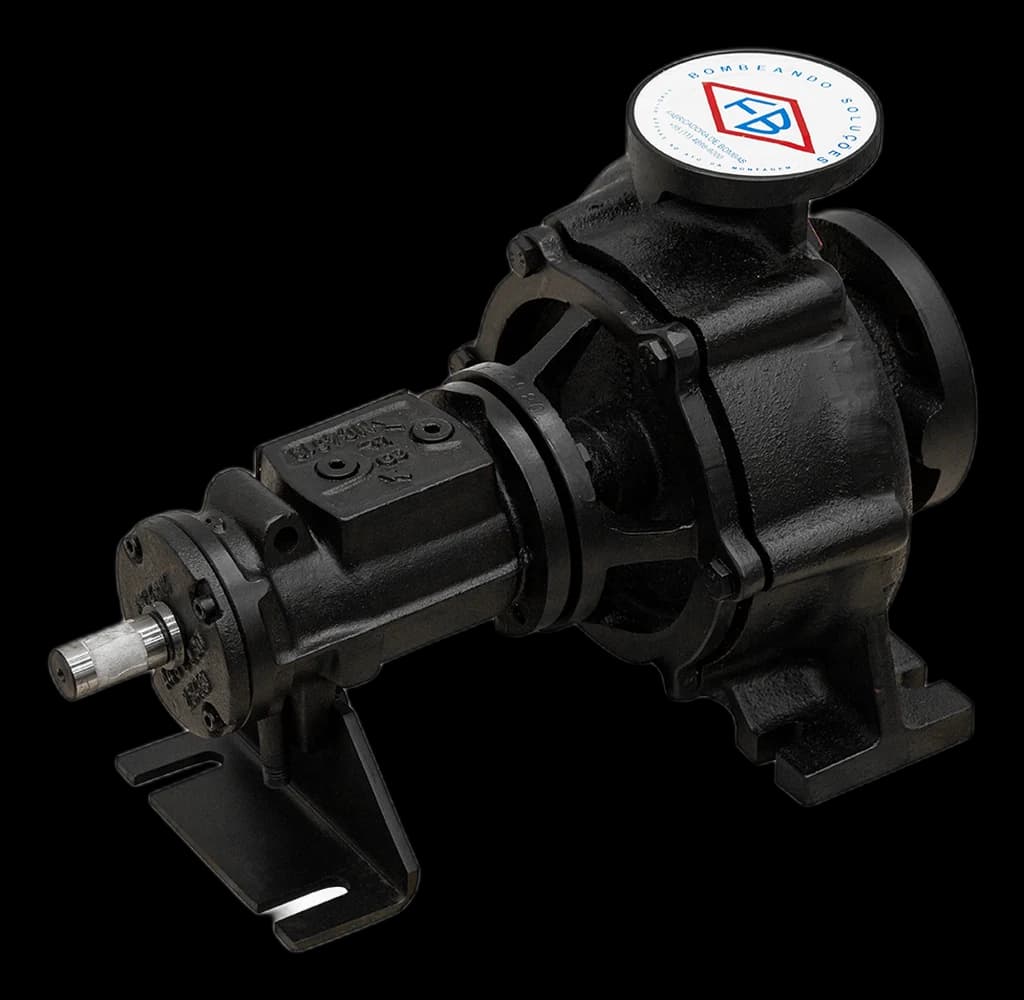

Drive side

Series reference photographs. The supplied configuration is defined during selection.

FBOT · Pump views (Portuguese PDF, p. 2, 13.5 MB)

Dual sealing

Sealing with graphite packing and a mechanical seal. The configuration and maintenance instructions must match the supplied equipment.

Back pull-out maintenance

Back-pull-out construction — allows bearing frame removal without disconnecting/misaligning piping. Simplifies maintenance.

Closed radial impeller

Closed radial impeller, single suction.

Casing and bearing frame

Spiral-shaped body, cast in single piece without feet. Bearing frame with 2 bearings — one oil-submerged, other shielded and grease-lubricated.

Manual MTEC-16/00 (§2.3) describes the seal immersed in bearing housing oil; the current catalogue (page 2) refers to the thermal oil itself. Confirm your pump configuration and the corresponding lubrication and maintenance instructions with engineering.

Thermal oil circuit application

Circulating thermal oil

FBOT circulates high-temperature organic thermal oils. Its construction requires no external cooling for this service.

FBOT assemblies with motors and coupling guards on baseplates.
Base-mounted assemblies · FBOT series reference. The image does not identify a model or motor power rating.

The fluid flowing through the pump

In these applications, selection concerns the thermal oil circuit. Listing an industry does not establish suitability for directly pumping food, asphalt or another process product.

The oil must not contain abrasive particles or substances that chemically attack pump components. Provide fluid identification, temperature and suction conditions for compatibility assessment.

Thermal circuits in these industries

  • Pharmaceutical industry
  • Chemical industry
  • Food industry
  • Textile industry
  • Plastics industry
  • Asphalt plants
FBOT · Application and construction (Portuguese PDF, p. 2, 13.5 MB)

Catalog data and FBOT manual

Review series limits and the manual before defining the equipment. Catalogue maxima do not describe a single operating point.

Discharge diameter
DN25 — DN300
Catalogue flow rate
2,200 m³/h
Catalogue head
135 m
Maximum temperature
350 °C
Maximum speed
3,500 rpm
Maximum suction pressure
10 bar

Review series limits and the manual before defining the equipment. Catalogue maxima do not describe a single operating point.

General pump characteristics
General pump characteristics
CharacteristicSpecification
Maximum impeller diameter152 to 317 mm, depending on the model
Impeller width5 to 23 mm, depending on the model
Impeller typeClosed radial, single suction
Bearing frame 3 — bearings6306 C4 / 6306 ZZ C4 WT
Bearing frame 4 — bearings6308 C4 / 6308 ZZ C4 WT
Bearing lubricationOil; the shielded bearing is grease-lubricated (item 2.4)
Graphite fibre packing5.5 mm · 3 pieces (part 461)
Single mechanical sealØ32 / Ø42 mm
Weight28 to 320 kg, depending on the model
Direction of rotationClockwise, viewed from drive end

Values from Table 1 and items 2.3 and 2.4 of manual MTEC-16/00, which lists bearing frames 3 and 4. For large-capacity models (DN 150 to DN 300), engineering confirms the impeller, bearing frame, sealing and weight during technical selection.

Discharge pressure × temperature
MTEC-16/00 · Figure 1 · p.5

Maximum discharge pressure depends on temperature. Refer to Figure 1 on page 5 of manual MTEC-16/00 and confirm the limit for the configuration and duty point with engineering. Do not substitute interpolated values for the original chart when selecting the equipment.

MTEC-16/00 · Pressure and temperature

Connections and accessories
  • ANSI B16.42 150lbs (standard)
  • DIN EN 1092-2 PN16 (optional)
  • Electric motor (driver)
  • Flexible coupling with or without spacer (FB Bombas standard or other manufacturers)
  • Coupling guard in carbon steel or anti-spark material
  • Steel "U"-shaped plate base
Connections and accessories
ConnectionDesignationSize
D1Support drain¼" BSP
D2Mechanical seal leakage indicator¼" BSP
FFOil supply¼" BSP
VVent¼" BSP
Impeller materials and peripheral speed
Impeller materials and peripheral speed
Valuem/s
Cast Iron40
Ductile Iron60
Carbon Steel60
Stainless Steels80
Motor power reserve
Motor power reserve
Absorbed power (CV)Motor power reserve
up to 2≈ 20% (minimum 1,5 cv)
up to 20≈ 15%
above 20≈ 10%
Parts identification
Parts identification
Part no.DescriptionQty
102Casing — Spiral Body1
163Pressure Cover1
183Support Foot1
210Shaft1
230Impeller1
321.01Radial Ball Bearing1
321.02Shielded Radial Ball Bearing, grease-lubricated1
330Bearing Frame1
360Bearing Cover1
400.01Flat Gasket — casing / pressure cover1
400.03Flat Gasket — bearing cover / bearing frame1
411Sealing Washer — FF, V and D1 connections3
433Mechanical Seal1
461Graphite Packing3
502Casing Wear Ring1
503Impeller Wear Ring1
550Support Cover1
551.01Spacer Washer — packing1
551.04Spacer Washer — bearing2
710Pipe1
901.01Hexagon Head Bolt — pressure cover / casing6
901.03Hexagon Head Bolt — bearing frame / casing4
901.13Hexagon Head Bolt — support foot / bearing frame1
903Plug — FF, V and D1 connections3
914Hexagon Socket Screw — bearing cover4
922Impeller Nut1
932.01Retaining Ring — packing1
932.04Retaining Ring — bearings2
936Lock Washer1
940.1Key — impeller1
940.2Key — coupling1
970Nameplate1

Part numbers according to DIN EN 24250 (Table 3 of manual MTEC-16/00). When requesting spare parts, provide the complete model code and the part number.

Preliminary selection by flow and total head

Locate flow and head ranges to begin selection. The performance curve and supplied configuration are confirmed for the oil and project conditions.

  1. 01

    Check the speed

    The 1,750 and 3,500 rpm charts are 60 Hz references. Use the one matching the speed specified for the project. On a 50 Hz supply the motor runs slower: by the affinity rules, flow varies with speed (Q ∝ n), head with its square (H ∝ n²) and power with its cube (P ∝ n³), and the selection is confirmed on the curve and in the proposal.

  2. 02

    Locate flow and head

    Read flow in m³/h on the horizontal axis and head in metres on the vertical axis. Model codes identify preliminary selection regions.

  3. 03

    Confirm the supplied curve

    Send the duty point, oil, temperature and suction conditions. The team confirms the model, impeller, power and required NPSH using the applicable documents.

Preliminary selection chart · 1,750 rpm

1,750 rpm · 60 Hz

Preliminary selection chart · 3,500 rpm

3,500 rpm · 60 Hz
FBOT · Preliminary selection charts (Portuguese PDF, p. 3, 13.5 MB)

These maps are not individual performance curves. On their own, they do not specify power, required NPSH or an impeller for your duty point. Series maxima do not describe one simultaneous operating point either.

The compact catalogue and manual have different coverage. For large-capacity ranges, also consult the manual charts; a code’s absence from these two images does not indicate discontinuation.

Documentation FBOT

The product catalogue and technical manual are in Portuguese. Review the available drawings and confirm the supplied configuration and dimensions in the quotation.

Product catalogues

These catalogues complement the technical manuals. For sizing and operating limits, consult the specific documentation and engineering team.

Questions about FBOT

Technical and commercial information to prepare your selection.

What is the maximum temperature for FBOT thermal oil pumps?

The maximum temperature of the FBOT series is 350 °C (MTEC-16/00). Maximum discharge pressure varies with temperature, as shown in Figure 1. Selection must consider the thermal oil and the project operating point.

Does the FBOT thermal oil pump need external cooling?

No. The series catalogue describes the FBOT as developed to pump organic thermal oils at high temperature, eliminating the need for external cooling. The bearing frame sealing has a dual safety system: graphite packing (MTEC-16/00, item 2.3) forms the first stage, in contact with the pumped thermal oil, and the mechanical seal runs immersed in oil. Confirm the sealing configuration of the supplied pump with engineering.

What type of seal do FBOT pumps use?

Sealing with graphite packing and a mechanical seal. The configuration and maintenance instructions must match the supplied equipment.

What industries use FBOT thermal oil pumps?

FBOT organic thermal oil applications include pharmaceutical, chemical, food, textile and plastics industries (MTEC-16/00). The fluid must be compatible with the pump materials. The series catalogue also includes asphalt plants. In all these sectors, the pump circulates the heating thermal oil, not the process product.

What fluids are compatible with FBOT pumps?

The series was developed for organic thermal oils. According to the manual, the fluid must not contain abrasive particles or substances that chemically attack pump components. Provide the product and its properties to engineering to confirm selection.

How many FBOT models are available?

The catalogue contains 35 models: 25 with dimensions in Table 5, grouped into 7 discharge diameters from DN25 to DN100, and 10 large-capacity models from DN150 to DN300 with dimensions on request. Each of the 25 dimensioned models identifies its bearing group in the specification.

How do you read an FBOT model code such as 32-160?

Under the designation in manual MTEC-16/00, the code FBOT 32-160 combines the brand (FB Bombas), the model (OT, for thermal oil, “óleo térmico” in Portuguese), the nominal diameter of the discharge flange (32 mm) and the nominal impeller diameter (160 mm). The .1 suffix, where present, is part of the variant code in Table 5. When requesting spare parts, documentation or a replacement, provide the complete code and the nameplate data.

Is the FBOT suitable for pumping any industrial oil?

The FBOT is a centrifugal pump developed for organic thermal oils, the heat-transfer fluid of heating circuits, and requires a fluid free of abrasive particles and of materials that chemically attack pump components (MTEC-16/00). For oils in general, the FBE series catalogue lists external gear pumps for applications such as diesel oil, crude oil, greases, asphalt, lubrication systems and oil burners. The choice between the series depends on the fluid, viscosity, temperature and operating point.

What is a thermal oil pump and what does the FBOT line cover?

FBOT is the FB Bombas centrifugal pump line developed for pumping organic thermal oils. FBOT has back-pull-out construction, a closed radial impeller, graphite packing and an oil-immersed mechanical seal (MTEC-16/00). The catalogue lets you select the family by service and open the specification for each model code.

How does the FBOT take over the duty of an installed thermal oil pump?

Replacement requires comparing the operating point, fluid, temperatures, flanges, installation dimensions, baseplate and drive. The same DN or a similar code does not confirm interchangeability. Send the installed pump drawing and data to engineering to assess the proposed supply.

Does the FBOT operate in thermal fluid heating systems up to 350 °C?

The series temperature limit is 350 °C (MTEC-16/00). Selection must also comply with suction pressure, the discharge-pressure-versus-temperature curve and the oil properties. Catalogue limits do not imply that every maximum can occur simultaneously.

Which FBOT variant serves a nitrogen-pressurized circuit?

To assess an FBOT for a nitrogen-pressurized circuit, provide suction and discharge pressures, temperature, thermal oil and start-up conditions. Engineering must confirm the applicable configuration and limits in the technical quotation. When replacing an installed pump, also provide its complete identification code.

Does the FBOT comply with ASME B73.1?

For a purchase requiring ASME B73.1, request documentary confirmation of the quoted configuration from engineering. FBOT has back-pull-out construction and flange references to ANSI B16.42 and DIN EN 1092-2 PN16 (MTEC-16/00); these references do not replace verification of the supply’s applicable standards.

How can I confirm the FBOT sealing configuration?

Manual MTEC-16/00 (§2.3) describes the seal immersed in bearing housing oil; the current catalogue (page 2) refers to the thermal oil itself. Confirm your pump configuration and the corresponding lubrication and maintenance instructions with engineering.

How can I identify the .1 variant of an FBOT pump?

Codes with the .1 suffix appear in Table 5 (MTEC-16/00). Keep the complete identification when checking dimensions, documentation and spare parts. Confirm the supplied configuration and its limits with engineering, considering circuit pressures, temperature and start-up conditions.

How should documents and supplier registrations be checked when buying an FBOT?

Use the series catalogue and manual MTEC-16/00 to assess the application. Ask engineering to identify the quoted model and configuration, together with the documents required by the project. When procurement requires Petrobras supplier registration, check the CRC presented, its validity and the product or service families it covers. The evidence must match the purchase requirements and the scope of supply.

Can the FBOT be coupled to a steam turbine in addition to electric motor?

An electric motor is among the FBOT drive accessories (MTEC-16/00). For a steam-turbine specification, submit the requirements to engineering to assess speed, coupling, loads and configuration. The catalogue manual does not provide general approval for every turbine drive.

How to request technical quotation and the FBOT technical manual?

Provide flow, total head, thermal oil type, temperature, suction pressure, speed and start-up conditions. If a pump is already installed, also send its code and drawing. Consult the technical manual at /en/technical-manuals/fbot and request a quotation with your process data.

Which standards does the FBOT technical manual cite for construction and pressure?

FBOT has ANSI B16.42 150lbs or DIN EN 1092-2 PN16 flanges and part numbering according to DIN EN 24250 (MTEC-16/00). Its technical table states maximum temperature of 350 °C and maximum suction pressure of 10 bar. Discharge pressure depends on temperature as shown in Figure 1. Consult /en/technical-manuals/fbot.

Which bearings does the FBOT use and how is the bearing frame lubricated?

The bearings are 6306 C4 and 6306 ZZ C4 WT for bearing frame 3 and 6308 C4 and 6308 ZZ C4 WT for bearing frame 4 (MTEC-16/00, Table 1). According to item 2.4, the bearing frame has 2 bearings: one runs submerged in oil and the other is shielded and grease-lubricated (parts 321.01 and 321.02 in the parts list). Each model with published dimensions identifies its bearing group in the specification.

What comes with an FBOT motor-pump set?

Accessory options (MTEC-16/00) include ANSI B16.42 flanges, with DIN EN 1092-2 PN16 as an option; electric motor drive; a flexible coupling, with or without spacer, FB Bombas standard or from other manufacturers; an FB Bombas standard coupling guard in carbon steel or non-sparking material; and a U-shaped steel plate baseplate. The motor power reserve over the power required by the pump follows Table 2 of the manual: about 20% up to 2 cv (metric horsepower), with a minimum of 1.5 cv, 15% up to 20 cv and 10% above 20 cv. The series catalogue shows the FBOT motor-pump set on a baseplate (Fig. 1). The scope of each supply is defined in the quotation.

How does impeller material limit FBOT speed?

FB Bombas Engineering sets the maximum impeller peripheral speed by material (MTEC-16/00): cast iron up to 40 m/s, ductile iron and carbon steel up to 60 m/s and stainless steels up to 80 m/s. Peripheral speed is u = π × D × n / 60, with D in metres and n in rpm. By this calculation, a cast iron impeller at 3,500 rpm is limited to a diameter of about 218 mm; at 1,750 rpm, the same limit corresponds to about 436 mm. That is why speed and impeller material are defined together during selection.

Series rating FBOT: 4.9/5 · 32 customer ratings

About this rating

Consolidated figures supplied by FB Bombas from its customer ratings spreadsheet. The score and count refer to the series; they are not independent counts for each model or configuration.

Request selection for a thermal oil circuit

Provide the thermal oil, temperature, flow, total head and suction conditions. Engineering checks the curve and pressure limits at operating temperature to propose an FBOT model and pump assembly.

Information to provide

  • Thermal oil, temperature and fluid properties.
  • Flow, total head and intended speed.
  • Suction pressure, available NPSH and start-up conditions.
  • Flange standard (ANSI B16.42 150 lbs or DIN EN 1092-2 PN16) and intended drive.
  • For a replacement: complete code, nameplate data and drawing of the installed pump.
