Brazilian manufacturer since 1944. Pumps for organic thermal oil in industrial heating systems, with operation up to 350 °C and double sealing. Quote directly with FB Bombas engineering — technical review based on the project scope.
Series limits: they do not occur simultaneously and do not apply to every model.
How it works
3 simple steps for your quote
Submit Your Request
Fill out the form with your application data: fluid, flow, pressure and working temperature.
Technical Sizing
Our engineering team analyzes your demand and selects the ideal pump for your application.
Receive Your Quote
After engineering analysis you receive a detailed commercial proposal with technical specifications.
What to provide
- Thermal oil, temperature and fluid properties
- Flow, total head and intended speed
- Suction pressure, available NPSH and start-up conditions
- Scope: bare-shaft pump or complete unit with motor and baseplate
Partial data is enough to get started. Nameplate photos, drawings or data sheets can be sent via WhatsApp.
Technical specifications

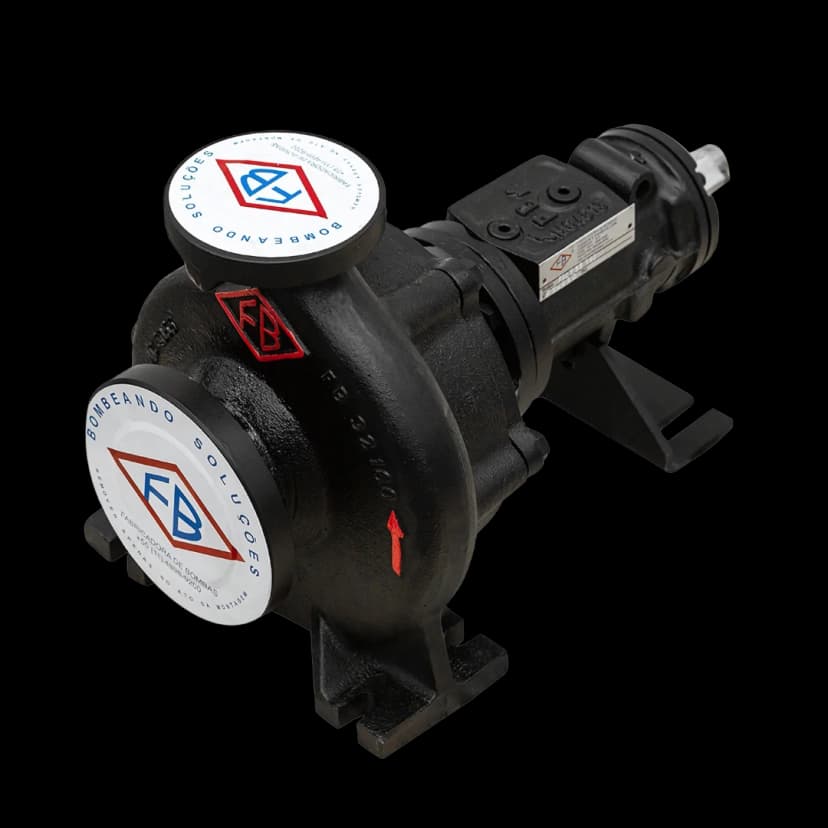

FBOT Series - Thermal Oil
Series rating FBOT: 4.9/5 · 32 customer ratings
Source and scope
Consolidated figures supplied by FB Bombas from its customer ratings spreadsheet. The score and count refer to the series; they are not independent counts for each model or configuration.
Series reference
- Flow
- up to 2,200 m³/h
- Head
- up to 135 m
- Speed
- up to 3,500 rpm
- Temperature
- up to 350 °C
- Sealing
- Double (seal + packing)
Sizes: DN25 to DN300
Series reference limits: they do not occur simultaneously and do not apply to every model. Selection depends on the fluid, speed, duty point and configuration.
Source: FBOT technical manual MTEC-16/00 and FBOT catalogue 2026-09
Features
- Spiral casing cast in a single piece
- Horizontal installation
- Back pull-out construction
- Single stage
- Graphite packing in the first sealing stage
- Oil-immersed mechanical seal
- No external cooling required (2026 catalogue)
Applications
Pharmaceutical, chemical, textile and plastics industries. Fluid must not contain abrasive particles.
FBOT Series Quote
Fill out the form and engineering replies after reviewing your request.
How much does a thermal oil pump cost?
An FBOT quote depends on the duty point, temperature, materials and scope of supply. FB Bombas engineering reviews the application data and defines the configuration before issuing a technical-commercial proposal, directly from the factory in Cabreúva-SP.
What drives the price of a thermal oil pump
Temperature and pressure
The series maximum temperature is 350 °C, always within the maximum pressure–temperature curve in manual MTEC-16/00 (Figure 1). Material selection considers the application conditions.
Two-stage sealing
Graphite packing in the first stage and a single mechanical seal immersed in oil form the FBOT sealing arrangement: manual MTEC-16/00 refers to the bearing-housing oil and the 2026 catalogue to the thermal oil itself. The supplied configuration is confirmed in the proposal.
Duty point (Q×H×T)
Provide flow, head, temperature and fluid. These inputs guide model and drive selection.
Drive and accessories
Specify the motor, coupling, guard and baseplate required. Also state any instrumentation requirements for technical review.
Package and documentation
State whether you need a bare-shaft pump or a complete unit, together with the required documentation. The proposal identifies the included items.
The FBOT price is provided in the technical-commercial proposal after the application review. Send the fluid, temperature, flow, head and required scope so engineering can detail the configuration, lead time and supply conditions.
How does temperature affect an FBOT quote?
Engineering assesses temperature together with pressure, fluid and duty point to select the configuration. Include the operating conditions and package requirements in your quote request.
Which sealing arrangement does the FBOT manual describe?
Manual MTEC-16/00 describes graphite packing in the first stage and a mechanical seal immersed in the bearing-housing oil; the 2026 FBOT catalogue describes the seal immersed in the thermal oil itself. The supplied configuration is confirmed in the technical proposal.
Where can I buy a thermal oil pump directly from the manufacturer?
Directly from FB Bombas, a Brazilian manufacturer since 1944 with its factory in Cabreúva-SP. The FBOT line (35 models, DN 25 to DN 300, series maximum temperature of 350 °C) is sold factory-direct, with sizing by application engineering; the proposal details the warranty (term, coverage and exclusions) and the genuine spare parts (impellers, shafts, seals). Send your application data through the form on this page to receive the proposal.
Buy factory-direct
Application engineering in the specification
Fluid, viscosity, flow, pressure and available NPSH analyzed by the people who build the pump — model and sealing selection comes from engineering, before the proposal.
Manufacturer warranty
The warranty is issued by the manufacturer itself: term, coverage and exclusions are defined in writing in the commercial proposal, according to the series and operating conditions.
Genuine parts and direct after-sales
Genuine spare parts (impellers, gears, shafts, bushings, seals, bearings, depending on the series) and after-sales technical support come from the same factory; availability and lead time are confirmed at quotation.
Factory lead time confirmed in writing
The manufacturing order opens at the plant itself and the lead time is documented in the technical-commercial proposal, along with performance curve and conditions.
